These standard blank panels are carefully fabricated to meet the specifications
of EIA standards. The brushed aluminum with 0.125" and .18" thick (5052-H32
material) front panels have anodized, alodine, and painted finishes. Steel
panels and formed panels are painted only.
The brushed aluminum front panels with anodized
finish have very high corrosion resistance and excellent appearance.
The formed panels are added to our vertical and
other racks as filler panels or back panels. They are made from 16 gauge
cold roll steel with a reinforced bend on the top and bottom edges.

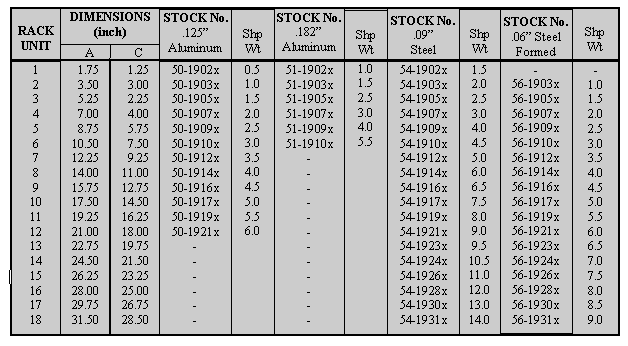

Ordering your front panels is as easy as ordering
our regular enclosures. Just use the stock numbers shown below and indicate
with the suffix - X what choice of finish you want. These front panels can
also be used as filler panels for any other standard racks. Please call
for vented panels or custom sizes.
-A gold alodine
-B black anodize
-C clear anodize
-E painted beige
-G painted gray
-N clear alodine
-P painted black
-R painted blue
